Carton is a three-dimensional shape, it is composed of a number of planes moving, stacking, folding, surrounded by a multi-faceted shape. The surface in three-dimensional construction plays the role of dividing space in space. The surface of different parts is cut, rotated and folded, and the surface obtained has different emotions. The composition of the carton display surface should pay attention to the connection between the display surface, side, top and bottom, and the setting of the packaging information elements.
Product Name |
White Card Paper Box |
Surface Handling |
Matt Lamination |

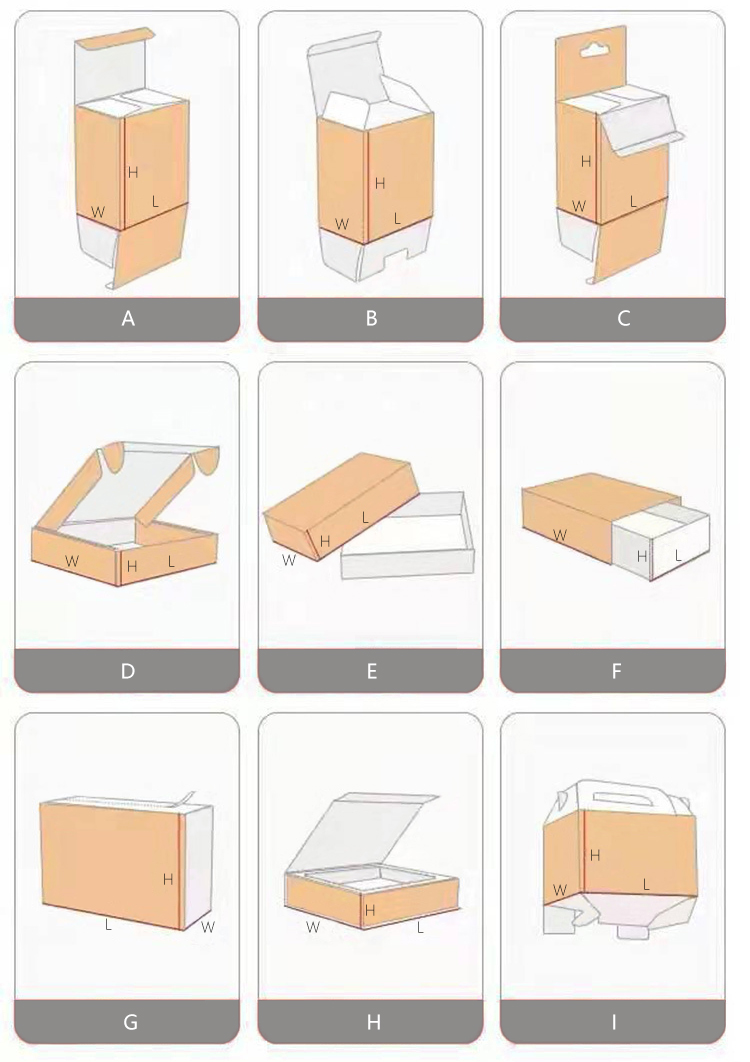

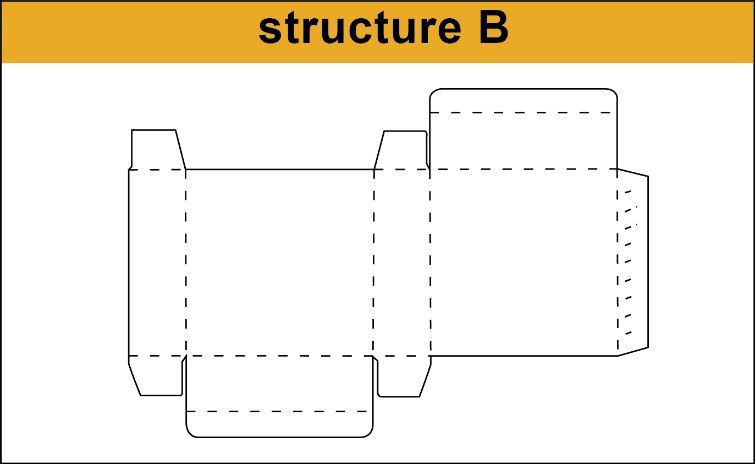

Box Style |
Structure B |
Logo Printing |
OEM |
Material Structure |
200/250 /300/350/400grams white paper |
Origin |
Ningbo port |
Weight |
C1S |
Sample |
Accept |
Gram |
10 pt to 22 pt |
Sample Time |
5-8 Working Days |
Color |
CMYK Color, Pantone Color |
Production Lead Time |
8-12 Working Days Based on Quantity |
Printing |
Offset Printing |
Transport Package |
Strong 5 ply Corrugated Carton |
Type |
Single Printing Box |
Business term |
FOB, CIF |

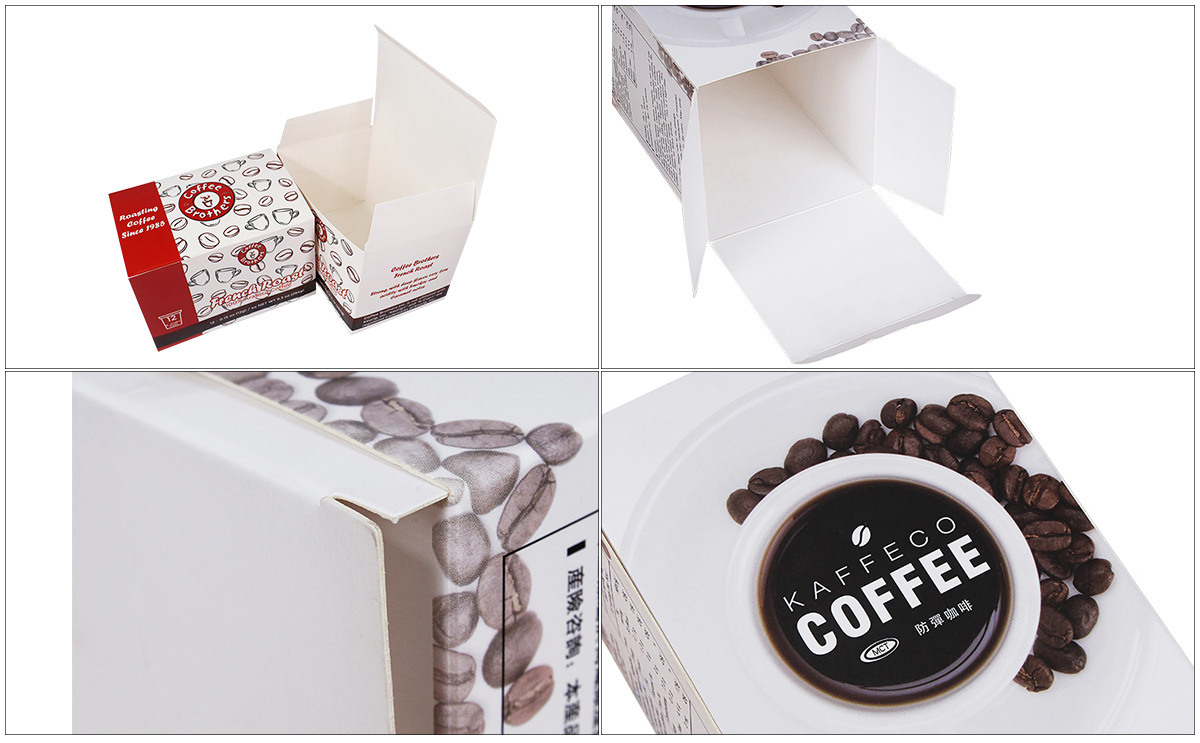

• White card carton
It is a particularly common type of paper box in daily packaging supplies. It is widely used in various fields after printing, and is also very popular among people.
♦ Materials
White card paper, C1S
White card paper is better, the price is a little expensive, but the texture and hardness are enough, again the point is white (white board).
Powder board paper: white on one side, grey on the other, lower price.
C1S PT/G SHEET |
||
PT |
Standard gram |
Using gram |
7 PT |
161 g |
|
8 PT |
174 g |
190 g |
10 PT |
199 g |
210g |
11 PT |
225 g |
230 g |
12 PT |
236g |
250g |
14 PT |
265 g |
300 g |
16 PT |
296 g |
300 g |
18 PT |
324g |
350g |
20 PT |
345 g |
350 g |
22 PT |
379 g |
400g |
24 PT |
407 g |
400 g |
26 PT |
435g |
450 g |
♦ Using Application
① Especially commonly used as a carton for alcohol packaging. It can print various exquisite patterns on the outside of the carton, which is very beautiful and attracts the eyes of consumers.
② The thinner white card box is used for the outer packing box of drugs, which is lighter in weight and lower in cost, which is very familiar to us at ordinary times;
③ White card box is also used for the outer packaging box of gifts. It is very flexible in the shape design, and can be designed according to the shape of the product and the positioning of the product to be more reasonable.
♦ Support for multiple architectures
Carton is a three-dimensional shape, it is composed of a number of planes moving, stacking, folding, surrounded by a multi-faceted shape. The surface in three-dimensional construction plays the role of dividing space in space. The surface of different parts is cut, rotated and folded, and the surface obtained has different emotions. The composition of the carton display surface should pay attention to the connection between the display surface, side, top and bottom, and the setting of the packaging information elements.
♦ Surface Disposal
• Role of surface treatment
❶ Protect the color of the carton surface.
The color image is the most direct message delivered by the gift box. If the color is removed, faded and faded, it is easy to leave the impression of poor quality and cheap. With oil and pvc lamination can protect the color of the surface of the carton, and the print will not fade easily under the ultraviolet light.
❷ Waterproof effect.
The paper box in the warehouse storage, water is easy to mold, rot. After light oil and finish, it is equivalent to forming a protective film on the surface paper. Which can isolate the water vapor outside and protect the product.
❸ Add texture to the box.
Surface is smoother, feel more comfortable. Especially after the matte glue, to the carton surface increased a layer of fog, which is more upscale.Common Surface Treatment As Follows
White Card Paper
Both sides of the white card paper are white. The surface is smooth and flat, the texture is hard, thin and crisp, and can be used for double-sided printing. It has relatively uniform ink absorption and folding resistance.
Kraft Paper
Kraft paper is flexible and strong, with high breaking resistance. It can withstand large tension and pressure without cracking.
